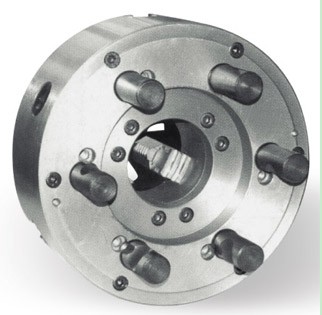

K11 D型
主要规格
| 卡盘型号 | D | D1 | D2 | D3 | N | H | J | L | M | S | A | Bmin-Cmax | Emin-Fmax | 最大夹紧力（kN) | 极限转速(r.p.m) |
| K11160/D4 | 160 | 82.6 | 63.513 | 45 | 38 | 11 |
| 80 | 3-M10*1 | 10 | 3-55 | 50-160 | 55-145 | 24 | 3000 |
| K11200/D4 | 200 | 82.6 | 63.513 | 60 | 38 | 11 |
| 86 | 3-M10*1 | 12 | 4-85 | 65-200 | 65-200 | 31 | 2800 |
| K11200/D6 | 200 | 133.4 | 106.375 | 60 | 44 | 13 |
| 86 | 6-M16*1.5 | 12 | 4-85 | 65-200 | 65-200 | 31 | 2800 |
| K11250/D6 | 250 | 133.4 | 106.375 | 85 | 44 | 13 |
| 98 | 6-M16*1.5 | 12 | 6-110 | 80-250 | 90-250 | 37 | 2200 |
| K11250C/D6 | 250 | 133.4 | 106.375 | 85 | 44 | 13 |
| 98 | 6-M16*1.5 | 12 | 6-110 | 80-250 | 90-250 | 37 | 2200 |
| K11250/D8 | 250 | 171.4 | 139.719 | 85 | 50 | 14 |
| 95 | 6-M20*1.5 | 12 | 6-110 | 80-250 | 90-250 | 37 | 2200 |
| K11250C/D8 | 250 | 171.4 | 139.719 | 85 | 50 | 14 |
| 95 | 6-M20*1.5 | 12 | 6-110 | 80-250 | 90-250 | 37 | 2200 |
| K11315A/D6 | 315 | 133.4 | 106.375 | 103 | 44 | 13 |
| 106 | 6-M16*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11315C/D6 | 315 | 133.4 | 106.375 | 103 | 44 | 13 |
| 106 | 6-M16*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11315A/D8 | 315 | 171.4 | 139.719 | 103 | 50 | 14 |
| 106 | 6-M20*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11315C/D8 | 315 | 171.4 | 139.719 | 103 | 50 | 14 |
| 106 | 6-M20*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11315A/D11 | 315 | 235 | 196.869 | 105 | 60 | 16 |
| 110 | 6-M22*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11315C/D11 | 315 | 235 | 196.869 | 105 | 60 | 16 |
| 110 | 6-M22*1.5 | 14 | 10-140 | 95-315 | 100-315 | 46 | 1500 |
| K11400C/D8 | 400 | 171.4 | 139.719 | 130 | 50 | 14 |
| 122 | 6-M20*1.5 | 17 | 15-210 | 120-400 | 120-400 | 55 | 1200 |

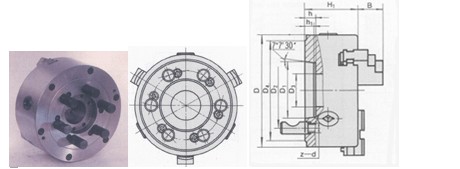

D型：拉杆\凸轮锁紧连接
| 规格/型式 | D | D1 | D2 | D3 | D4 | H1 | h | h1 | z-d |
| K11125/D3 | 125 | 53975 | 70.6 | 25 | 92 | 63 | 13 | 10 | 3-M10×1 |
| K11125/D4 | 125 | 63.513 | 82.6 | 25 | 117 | 63 | 13 | 10 | 3-M10×1 |
| K11160/D3、K11160A/D3 | 160 | 53.975 | 70.6 | 40 | 92 | 76 | 13 | 10 | 3-M10×1 |
| K11160/D4、K11160A/D4 | 160 | 63.513 | 82.6 | 40 | 117 | 70 | 13 | 10 | 3-M10×1 |
| K11160/D5、K11160A/D5 | 160 | 82.563 | 104.8 | 40 | 146 | 73 | 15 | 12 | 6-M12×1 |
| K11200/D4、K11200A/D4、K11200C/D4 | 200 | 63.513 | 82.6 | 50 | 117 | 86 | 13 | 10 | 3-M10×1 |
| K11200/D5、K11200A/D5、K11200C/D5 | 200 | 82.563 | 104.8 | 50 | 146 | 86 | 15 | 12 | 6-M12×1 |
| K11200/D6、K11200A/D6、K11200C/D6 | 200 | 106.375 | 133.4 | 50 | 181 | 86 | 16 | 13 | 6-M16×1.5 |
| K11250/D5、K11250A/D5、K11250C/D5 | 250 | 82.563 | 104.8 | 70 | 146 | 95 | 15 | 12 | 6-M12×1 |
| K11250/D6、K11250A/D6、K11250C/D6 | 250 | 106.375 | 133.4 | 70 | 181 | 98 | 16 | 13 | 6-M16×1.5 |
| K11250/D8、K11250A/D8、K11250C/D8 | 250 | 139.719 | 171.4 | 80 | 225 | 98 | 18 | 14 | 6-M20×1.5 |
| K11315/D6、K11315A/D6、K11315C/D6 | 315 | 106.375 | 133.4 | 100 | 170 | 106 | 16 | 13 | 6-M16×1.5 |
| K11315/D8、K11315A/D8、K11315C/D8 | 315 | 139.719 | 171.4 | 100 | 181 | 106 | 18 | 14 | 6-M20×1.5 |
| K11315/D11、K11315A/D11、K11315C/D11 | 315 | 196.869 | 235 | 100 | 225 | 106 | 20 | 16 | 6-M22×1.5 |
| K11320/D6、K11320A/D6、K11320C/D6 | 320 | 106.375 | 133.4 | 100 | 181 | 106 | 16 | 13 | 6-M16×1.5 |
| K11320/D8、K11320A/D8、K11320C/D8 | 320 | 139.719 | 171.4 | 100 | 225 | 106 | 18 | 14 | 6-M20×1.5 |
| K11320/D11、K11320A/D11、K11320C/D11 | 320 | 196.869 | 235 | 100 | 298 | 106 | 20 | 16 | 6-M22×1.5 |
| K11325/D6、K11325A/D6、K11325C/D6 | 325 | 106.375 | 133.4 | 100 | 191 | 106 | 16 | 13 | 6-M16×1.5 |
| K11325/D8、K11325A/D8、K11325C/D8 | 325 | 139.719 | 171.4 | 100 | 225 | 106 | 18 | 14 | 6-M20×1.5 |
| K11325/D11、K11325A/D11、K11325C/D11 | 325 | 196869 | 235 | 100 | 298 | 106 | 20 | 16 | 6-M22×1.5 |
| K11380/D8、K11380A/D8、K11380C/D8 | 380 | 139.719 | 171.4 | 130 | 225 | 118 | 18 | 14 | 6-M20×1.5 |
| K11380/D11、K11380A/D11、K11380C/D11 | 380 | 196.869 | 235 | 130 | 298 | 118 | 20 | 16 | 6-M22×1.5 |
| K11400/D8、K11400A/D8、K11400C/D8 | 400 | 139.719 | 171.4 | 130 | 225 | 118 | 18 | 14 | 6-M20×1.5 |
| K11400/D11、K11400A/D11、K11400C/D11 | 400 | 196.869 | 235 | 130 | 298 | 118 | 20 | 16 | 6-M22×1.5 |
| K11500/D11、K11500A/D11、K11500C/D11 | 500 | 196.869 | 235 | 190 | 298 | 135 | 20 | 16 | 6-M20×1.5 |
| K11500/D15、K11500A/D15、K11500C/D15 | 500 | 285.775 | 330.2 | 200 | 403 | 135 | 21 | 17 | 6-M24×1.5 |
| K11630/D11、K11630A/D11 | 630 | 196.869 | 235 | 190 | 298 | 154 | 20 | 16 | 6-M22×1.5 |
| K11630/D15、K11630A/D15 | 630 | 285.775 | 330.2 | 260 | 403 | 154 | 21 | 17 | 6-M24×1.5 |
| K11800A/D15 | 800 | 285.775 | 330.2 | 280 | 403 | 178 | 21 | 17 | 6-M24×1.5 |
| K11800A/D20 | 800 | 412.775 | 463.6 | 385 | 546 | 178 | 23 | 19 | 6-M27×2 |
