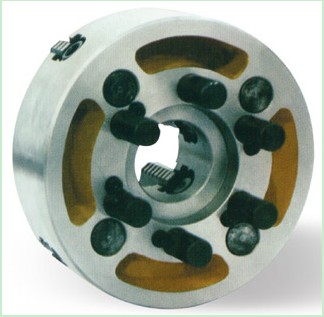

K72 D型
产 品 说 明
D型：拉杆、凸轮锁紧连接
主要规格
| 规格D | 主轴头号 | 规格 D | 主轴头号 |
| 160 | 3 | 400 | 6 |
| 200 | 3 | 500 | 6 |
| 200 | 4 | 320 350 | 8 |
| 250 | 4 | 400 | 8 |
| 320 350 | 4 | 500 | 8 |
| 200 | 5 | 400 | 11 |
| 250 | 5 | 500 | 11 |
| 320 350 | 5 | 630 | 11 |
| 400 | 5 | 500 | 15 |
| 250 | 6 | 630 | 15 |
| 320 350 | 6 |
|
|
| 盘型号 | D | D1 | D2 | D3 | D4 | H | L | M | N | S |
| K72200/D3 | 200 | 115 | 70.6 | 53.975 | 48 | 10 | 75 | 3-M10*1 | 31 | 10 |
| K72200/D4 | 200 | 115 | 82.6 | 63.513 | 56 | 10 | 75 | 3-M10*1 | 38 | 10 |
| K72250/D6 | 250 | 170 | 133.4 | 106.375 | 75 | 13 | 80 | 6-M16*1.5 | 44 | 12 |
| K72315/D6 | 315 | 170 | 133.4 | 106.375 | 95 | 13 | 90 | 6-M16*1.5 | 44 | 14 |
| K72315/D8 | 315 | 225 | 171.4 | 139.719 | 95 | 14 | 90 | 6-M20*1.5 | 51 | 14 |
| K72400/D6 | 400 | 170 | 133.4 | 106.375 | 95 | 13 | 95 | 6-M16*1.5 | 44 | 14 |
| K72400/D8 | 400 | 225 | 171.4 | 139.719 | 125 | 14 | 95 | 6-M20*1.5 | 51 | 14 |
| K72500/D8 | 500 | 240 | 171.4 | 139.719 | 125 | 14 | 106 | 6-M20*1.5 | 51 | 14 |
| K72500/D11 | 500 | 298 | 235 | 196.869 | 160 | 16 | 106 | 6-M22*1.5 | 60 | 14 |
| K72630/D11 | 630 | 296 | 235 | 196.869 | 180 | 16 | 115 | 6-M22*1.5 | 60 | 17 |
